Hemoglobin Analyzer

Rapid Anemia Screening in 10 Seconds

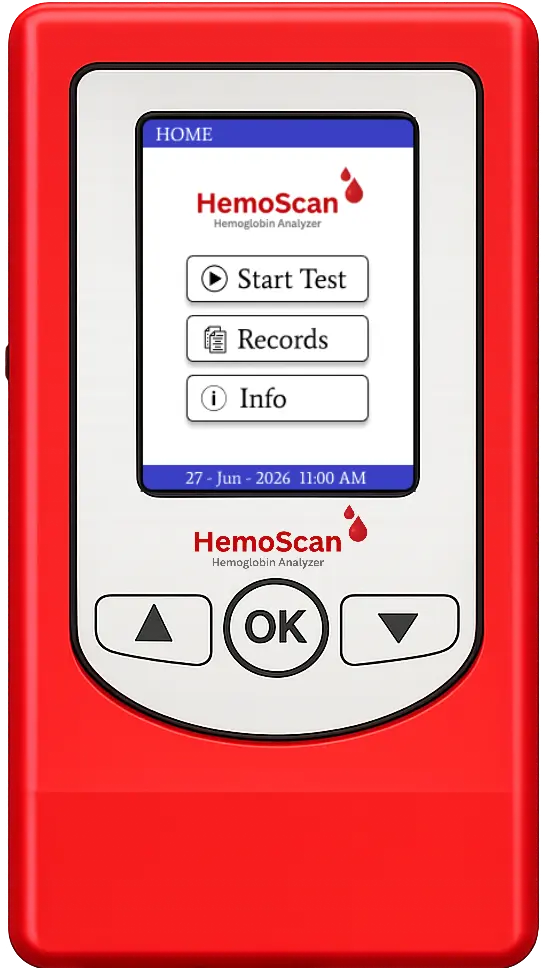

HEMOSCAN is a portable hemoglobin testing device designed for fast, on‑the‑spot screening with clear, easy‑to‑read results. It displays hemoglobin in g/dL with a simple severity indicator and an estimated HCT.

Discover Features Request Quote

10s Test Time

10µL Sample Size

<1% CV Precision

Why Choose HemoScan?

Engineered for accuracy, designed for portability.

Detailed Diagnostics

Measures Hemoglobin (Hb) and automatically calculates Hematocrit (HCT). Includes Smart Anemia Classification (Normal, Mild, Moderate, Severe).

Results in < 10 Seconds

Fast, on-the-spot screening with audible feedback permits rapid clinical decision-making. Wakes instantly on button press.

Intuitive Interface

2.4-inch Color TFT LCD with a vibrant, easy-to-read interface. Simple 4-button navigation (Up, Down, Back, OK).

Powerful Battery

rechargeable 2600 mAh Li-ion battery. Delivers ~24 hours runtime. Intelligent auto-sleep to maximize battery life.

Smart Sampling

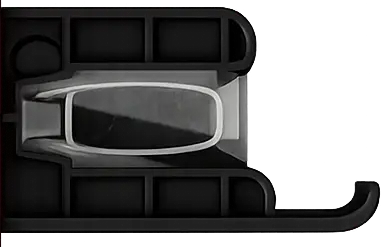

Uses a dedicated micro-cuvette tray with automatic insertion detection. Requires only tiny sample volume.

On-Board Memory

Allows users to review previous test results directly on the device.

Designed for Every Setting

The HemoScan system utilizes disposable microcuvettes that automatically draw blood by capillary action, making the testing process hygienic, safe, and efficient in any environment.

✓ Blood Banks

✓ Primary Care Clinics

✓ Maternity Wards

✓ Mobile Health Units

✓ Public Health Programs

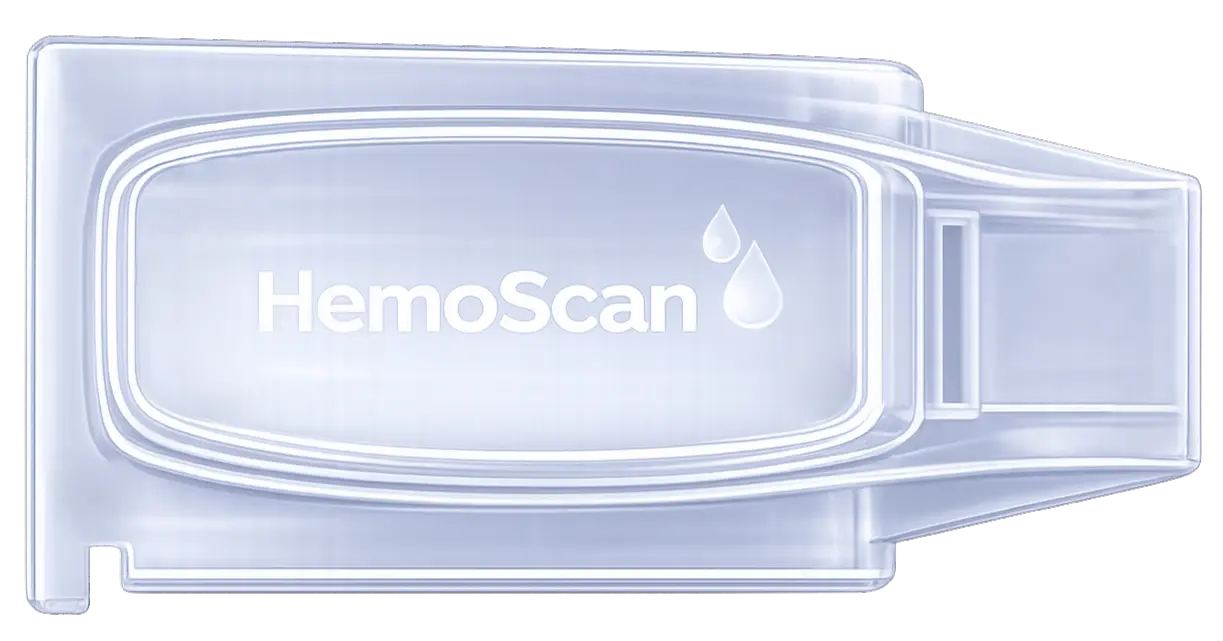

Microcuvette

Technical Specifications

Robust performance in a compact form factor.

Parameters	Hemoglobin (Hb), Hematocrit (Hct)
Measurement Range	0 – 25.6 g/dL
Anemia Classification	Normal, Mild, Moderate, Severe
Display	2.4-inch Color TFT LCD
Controls	4-Button Navigation (Up, Down, Back, OK)
Testing Time	< 10 seconds
Power Source	2600 mAh Rechargeable Li-ion Battery (~24h runtime)
Operating Temp	10°C – 40°C
Alerts	Audible feedback, Low-battery & Full-charge alerts
